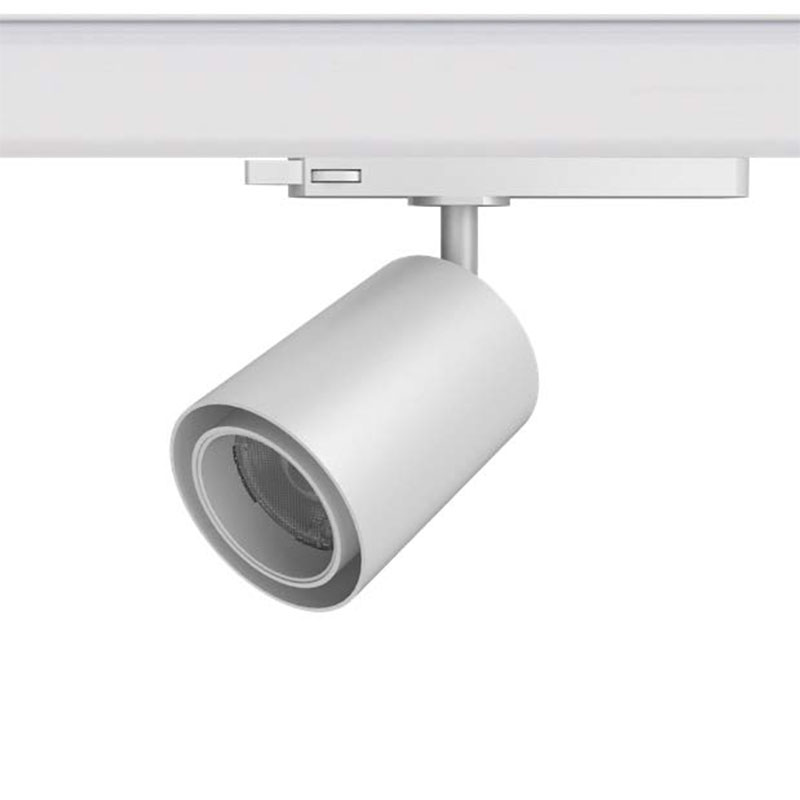

Ever
Ever is family of products designed to offer the best in terms of size reduction and performance maximization. The compact design makes it perfectly up-to-date as it guarantees a very low aesthetic impact when installed and at the same time sustainable from an economic, environmental and transport point of view.
For the more detail product information or complete catalogue,
please contact with us sales@vianolux.com
Code composition
| Product information | VLT480/20W | VLT480/28W | VLT480/32W | VLT480/35W | VLT480/40W |
|---|---|---|---|---|---|
| Installation: | Track 3 circuits | ||||
| Material: | Aluminum | ||||
| Painting: | Highly pure powder coating | ||||
| System power(W): | 20 | 28 | 32 | 35 | 40 |
| Fixture lumen output(lm): | 2100 | 3360 | 3840 | 4000 | 4600 |
| System efficiency(lm/W): | 105 | 120 | 120 | 115 | 115 |
| Led driver | Included | Included | Included | Included | Included |
| Light source information | |||||
| Led Typology: | COB | COB | COB | COB | COB |
| Led power (W) | 20 | 28 | 32 | 35 | 40 |
| Lumen output 3000K CRI 90 (lm): | 2800 | 4900 | 5500 | 5250 | 6000 |
| Led efficiency (lm/W): | 140 | 140 | 140 | 150 | 150 |
| Model | Power | CRI RA | CCT K | Beam ° | Color | Cover | Dimming |
|---|---|---|---|---|---|---|---|
| VLT480-20 | 20W | 90 >90 SDCM 3 | 2700K (27) | 15° | WH White | NA | On-Off |
| VLT480-28 | 28W | 3000K (30) | 24° | BK Black | DALI | ||
| VLT480-32 | 32W | 3500K (35) | 36° | SG Grey | Phase-Cut | ||
| VLT480-35 | 35W | 4000K (40) | 50° | 1-10V | |||
| VLT480-40 | 40W |
