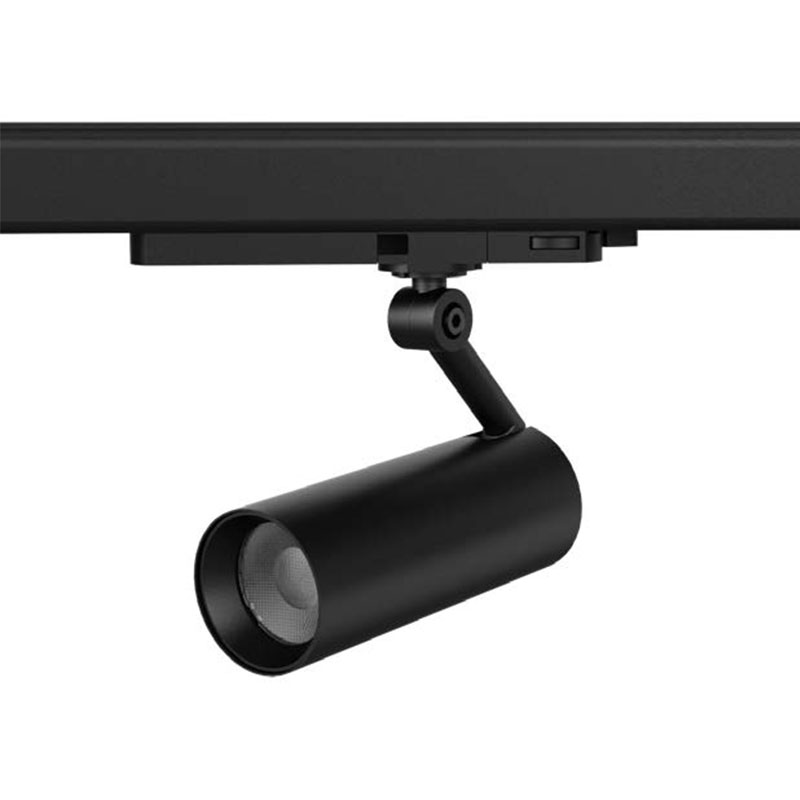

Zen
The product is available with different adapter to match all tracks in the market. Not only for new projects, the Zen Double Pivot represents the best choice also for product replacement and relamping where tracks are aready presents.
For the more detail product information or complete catalogue,
please contact with us sales@vianolux.com
Code composition
| Product information | VLT218F/15W | VLT218F/20W | VLT218F/28W | VLT218F/32W |
|---|---|---|---|---|
| Installation: | Track 3 circuits | |||
| Material: | Aluminum | |||
| Painting: | Highly pure powder coating | |||
| System power(W): | 15 | 20 | 28 | 32 |
| Fixture lumen output(lm): | 1575 | 2100 | 3360 | 3840 |
| System efficiency(lm/W): | 105 | 105 | 120 | 120 |
| Led driver | Included | Included | ||
| Light source information | ||||
| Led Typology: | COB | COB | ||
| Led power (W) | 15 | 20 | 28 | 32 |
| Lumen output 3000K CRI 90 (lm): | 1950 | 2600 | 3920 | 4480 |
| Led efficiency (lm/W): | 130 | 130 | 140 | 140 |
| Model | Power | CRI RA | CCT K | Beam ° | Color | Cover | Dimming |
|---|---|---|---|---|---|---|---|
| VLT218F-15 | 15W | 90 >90 SDCM 3 | 3000K (30) | 20° | WH White | Clear | On-Off |
| VLT218F-20 | 20W | 4000K (40) | 32° | BK Black | Frosted | DALI | |
| VLT218F-28 | 28W | 5000K (50) | 40° | SG Grey | Phase cut | ||
| VLT218F-32 | 32W | 55° |
