Retro

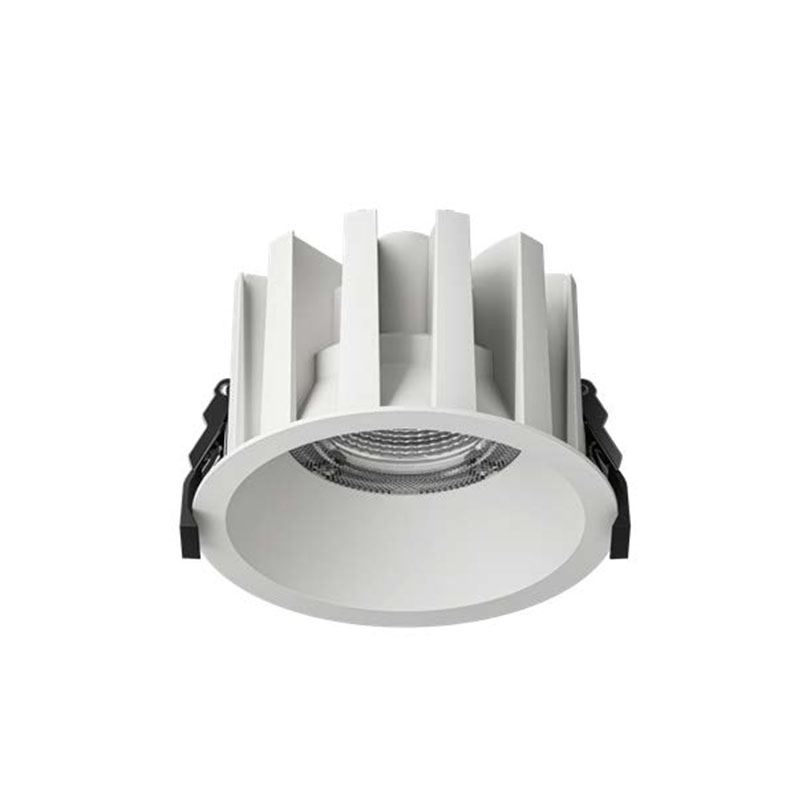

The RETRO IP65 Waterproof Series combines vintage-inspired design with robust IP65 protection, making it ideal for damp or outdoor spaces. Built with durable materials and high-performance LEDs, it delivers reliable, stylish lighting that withstands moisture and dust.
For the more detail product information or complete catalogue,
please contact with us sales@vianolux.com
Code composition
| Product information | VLD126C-12W | VLD126C-20W | VLD126C-30W | VLD126C-40W | VLD126C-45W | VLD126C-55W |
|---|---|---|---|---|---|---|
| Installation: | Recessed | |||||
| Material: | Aluminum | |||||
| Painting: | Highly pure powder coating | |||||
| System power(W): | 12 | 20 | 30 | 40 | 45 | 55 |
| Fixture lumen output(lm): | 1080 | 1800 | 3150 | 4000 | 4500 | 5500 |
| System efficiency(lm/W): | 90 | 90 | 105 | 100 | 100 | 100 |
| Led driver | Included | |||||
| Light source information | ||||||
| Led Typology: | COB | |||||
| Led power (W) | 12 | 20 | 30 | 40 | 45 | 55 |
| Lumen output 3000K CRI 90 (lm): | 2400 | 2400 | 3900 | 5500 | 5800 | 7700 |
| Led efficiency (lm/W): | 120 | 120 | 130 | 130 | 130 | 140 |
| Model | Power | CRI RA | CCT K | Beam ° | Color | Cover | Dimming |
|---|---|---|---|---|---|---|---|
| VLD126C-12 | 12W | 90 >90 SDCM 3 | 2700K (27) | 15° | WH White | NA | On-Off |
| 80 >80 SDCM 3 | 3000K (30) | 24° | BK Black | DALI | |||
| 3500K (35) | 38° | Phase-Cut | |||||
| 4000K (40) | 60° | 1-10V |
